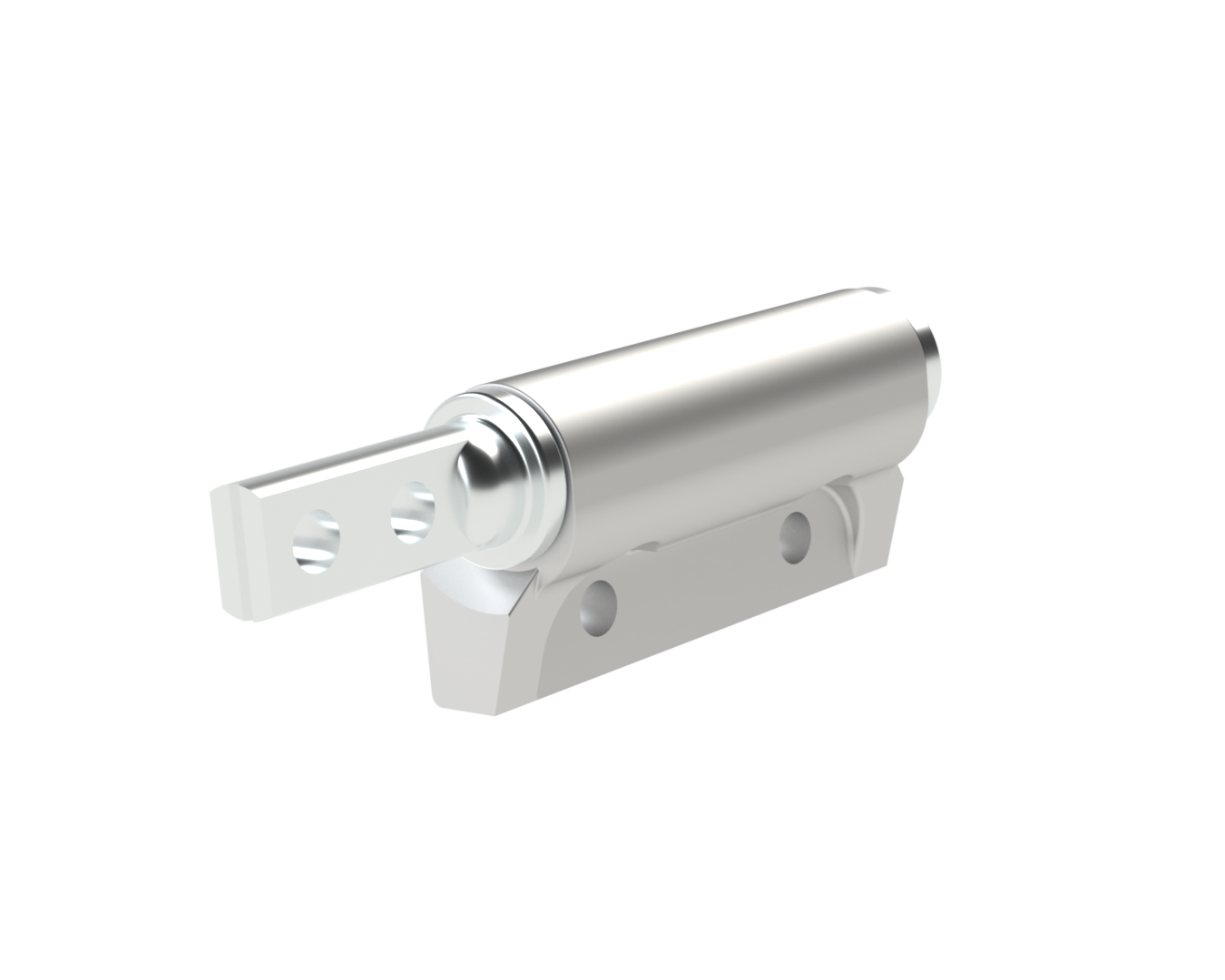

The Reell PHK asymmetric flag hinge offers medium torque up to 5.5 N-m, 360° rotation, and reduces movement force in one direction for easy vertical adjustment.
The Model PHK hinge is designed for positioning applications that require up to 5.5 N-m (48.7 lb-in) of torque and up to 360° rotation.
The PHK features an asymmetric torque design that reduces the force required to move in one direction to 60% of that in the other direction. This can be especially effective in vertical mounting applications where it reduces the force needed to make adjustments in the upward direction, while still providing the full holding force in the downward direction.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
360°
M4 or #8 Screw
Zinc
20,000 cycles
Yes
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Straight
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Straight
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Straight
Weight: 104 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Straight
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Straight
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Straight
Weight: 104 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 1.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Straight
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Straight
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Straight
Weight: 104 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Straight
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Straight
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Straight
Weight: 104 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 2.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Straight
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Straight
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Straight
Weight: 104 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Straight
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Straight
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Straight
Weight: 104 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 3.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Straight
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Straight
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Straight
Weight: 104 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Straight
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Straight
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Straight
Weight: 104 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 4.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Straight
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Straight
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Straight
Weight: 104 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Forward
Shaft End: Dual Elbow 90deg
Weight: 104 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Straight
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Straight
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Straight
Weight: 104 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Left Elbow 90deg
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Right Elbow 90deg
Weight: 88 g
Torque: 5.5 N-m
Torque Profile: Asymmetric - Reverse
Shaft End: Dual Elbow 90deg
Weight: 104 g
