A VESA monitor mount is a universally standard mount for most monitors, TVs, and displays that features a pre-drilled four-hole screw pattern that adheres them to wall mounts, desk arms, full-motion articulating arms, and stands.
Reell monitor mounts come equipped with industry-standard VESA patterns, offering precise positioning and a greater range of motion in monitors, TVs, and displays. Our monitors deliver repeatable, reliable movement without torque degradation, dropping, or sagging. With different torque profiles to match any design, Reell VESA monitors support a range of applications.
Have questions about our monitor mounts?
Reell monitor mounts provide a reliable positioning solution for monitor applications and other displays that require a stronger hold and repeatable movements. Common positioning challenges include:
Display drift and positioning loss due to torque degradation and inadequate torque
Inconsistent or jerky movement as pivots “break free” from static positions
Excessive adjustment force causing displays to move with difficulty
Limited range of motion due to incorrect joint type and mechanical design constraints
Torque degradation and wear in mounting equipment due to low-cycle components
Cost and complexity of additional locking mechanisms required to hold monitor in position
Reell monitor mounts offer engineers and end users:
Not all monitors are mounted with a standard VESA pattern. In applications such as medical devices and kiosks, monitors are elegantly integrated into the overall design. In these cases, Reell friction hinges and torque inserts provide hundreds of options to accommodate various screen sizes, mounting positions, and range of motion.
Use the Reell Hinge Selection Guide to quickly find the right torque profile and hinge style for your project.
Choosing the correct monitor mount for your application ensures the proper positioning needs are met. Key considerations include:
A VESA monitor mount is a universally standard mount for most monitors, TVs, and displays that features a pre-drilled four-hole screw pattern that adheres them to wall mounts, desk arms, full-motion articulating arms, and stands.

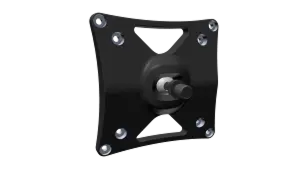

Reell’s vMX VESA monitor mount range of motion offers 360° of symmetric torque, allowing it to tilt, swivel, and rotate in any direction and hold its place instantly in any position.
Reell’s vTilt VESA monitor mount range of motion offers 90° of differential or one-way torque, allowing it to tilt up and down or side to side as needed.
Start by controlling both the holding torque and system stiffness. A tap applies a short impulse load to the screen. If the torque is too low, the joint moves. If the frame or mount flexes, the display moves even with correct torque.
Set the torque high enough to resist these tapping forces, then verify the system structure does not deflect under load.
Reell torque components provide defined, repeatable holding torque that stays consistent over time, removing variability from the joint itself. Reell can help define the correct torque and help you evaluate the system’s geometry, stiffness, and mounting location to eliminate perceived movement at the screen.
If your display shifts during use, or you are early in your design process and want to avoid this issue, contact us. We work with engineers to select the right torque and identify system options to hold position in real-world applications.
While traditional monitor mounts offer movement, they often have a short life, don’t hold up well to repeated positioning, and slowly drift from where they are positioned if not adjusted frequently. Reell monitor mounts remedy these positioning problems by offering extended life cycles, smooth movement in multiple directions, and a strong hold that remains exactly where positioned.
Start by defining how your display needs to move and hold position. Avoid brackets, fasteners, and stacking friction elements bolted together. That approach may prove out in a concept build, but it rarely delivers consistent torque, smooth motion, or repeatable performance in production.
After defining the motion required and mounting point, consider one of the many Reell torque solutions, from a simple surface-mounted set of flag hinges or for a more integrated, streamlined design, a torque insert hidden along the axis of rotation of your design.
Reell is the trusted global partner for friction hinges, torque inserts, springs, clutches, and custom motion systems. Our components deliver premium movement and long service life across industries.
