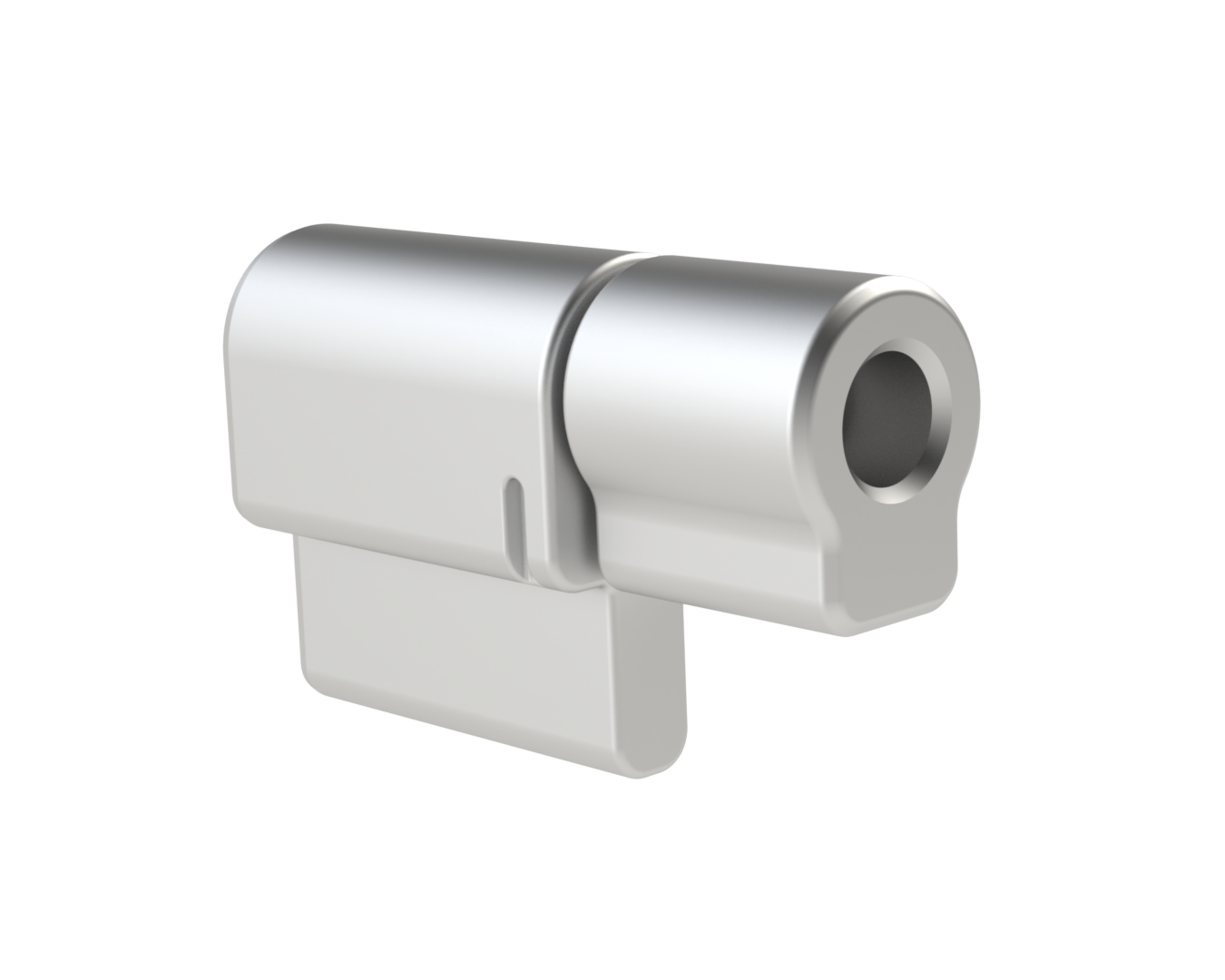

The Reell TI-C5M is a compact, low-torque symmetric insert with an extended life cycle, smooth motion, 360° rotation, and easy, press-fit installation in consumer electronics.
Reell TI-C5M Torque Insert features consistent long-life performance in a compact single-fin mounting profile. Its 5mm housing is small enough for modern consumer electronics applications, and its 30,000 cycle life gives the hinge the long-lasting, smooth-feel performance of ReellTorq® technology.
It is easy to mount into a wide variety of materials for consumer electronics via a simple press fit on its knurled shaft-end and a keyed press fit on the single-fin housing.
With available torque up to 0.30 N-m, the TI-C5M provides nearly ten times the holding force of competing hinge products.
.png)
.png)
360°
Press Fit
Zinc
30,000 cycles
Symmetric
Yes
